Settlement, Differential Settlement or Curvature?

Above: Recorded outside Cologne Cathedral, Germany

When engineers talk about building damage caused by ground movement, the conversation often turns to settlement. Sometimes it turns to differential settlement. But neither term quite gets to the heart of the problem.

That was the subject of a recent episode of Tensar Ground Coffee, filmed outside the magnificent Cologne Cathedral. Standing in front of one of Europe’s most impressive masonry structures and also the tallest cathedral in the world, I used an unlikely prop—a pretzel—to explain a concept that often causes confusion: the difference between settlement, differential settlement, and curvature.

At first glance, it might seem like these are simply different ways of describing the same thing. They are not.

Settlement

The Ground Goes Down

Settlement is simply the downward movement of the ground and anything founded upon it.

All foundations settle to some degree. If settlement occurs uniformly beneath an entire structure, it is often of little consequence. A building that moves downward by 25 mm, 50 mm or even more may remain perfectly serviceable if every part settles by roughly the same amount.

Engineers therefore do not usually worry about settlement alone. What matters is whether one part of the structure settles more than another.

Imagine holding a pretzel flat between your hands. When a building applies weight to the ground, it causes compression. If the loading, ground conditions, and foundations are relatively uniform, the whole structure settles downward evenly. The pretzel doesn't feel any strain, and neither does a building. The only potential issue might be at connections like incoming water or sewer pipes.

Differential Settlement

The Structure Starts to Tilt

Differential settlement describes the difference in settlement between two points.

Imagine one side of a building settling more than the other—perhaps due to non-uniform loads, softer ground on one side, or existing buried foundations. If the building's foundation is relatively stiff, the whole structure tilts in a straight line.

If you hold that pretzel and tilt it to one side along a straight axis, the pretzel itself isn't being twisted or distorted. The same goes for a building: differential settlement causes a rigid tilt, but the building itself experiences no internal distortion or structural damage.

The main issue with pure differential settlement is operational. The structure begins to lean, floors are no longer perfectly level, and doors or windows may stick. Occupants may notice the tilt long before they can actually see it. You would see this clearly in a tall building—though looking up at the towers of Cologne Cathedral, they did a remarkably good job keeping them straight and vertical.

In roads, railways and pipelines, differential settlement can also create operational issues. Water may no longer drain as intended. Ride quality can deteriorate. Gravity-fed sewers may lose efficiency.

However, differential settlement on its own does not necessarily cause damage.

This is where many discussions stop, but it is not where the engineering story ends.

Curvature

The Real Cause of Damage

The critical factor is often how quickly differential settlement changes over distance.

Engineers refer to this as curvature, and it can be quantified in a number of ways, including deflection ratio and angular distortion. Instead of a straight, flat slope, imagine the slope varying across the building—causing a sagging or hogging effect.

This is where our pretzel comes back in. If you bend the pretzel into a curve to simulate sagging deformation, it snaps. That snap is precisely what causes structural damage. Bending a material forces one side into compression while pulling the opposite side into tension. Many construction materials—like masonry, brick, unreinforced concrete, asphalt pavements, and pretzels can handle compression well, but they cannot sustain tensile strain. It is the curvature that generates this destructive tensile strain.

When Does Curvature Become Excessive?

Curvature becomes excessive when the resulting tensile strains exceed the capacity of the building materials. Cracks appear in buildings and pavements. Pipes fracture.

In other words, it is usually not the amount of differential settlement that causes the damage—it is the rate at which that differential settlement develops.

A structure can tolerate a surprisingly large differential settlement if it develops gradually over a long distance. The resulting curvature remains low and the structure experiences only minor distortion.

Conversely, a relatively modest differential settlement occurring over a short distance can generate significant curvature and severe damage.

Why Curvature Develops

Curvature is rarely caused by a single factor. It is typically the result of a complex interaction between the structure, its foundations and the supporting ground.

Variable soil conditions are a common culprit. Soft pockets within an otherwise competent soil profile can produce localised settlements. Historical foundations, buried structures and remnants of previous development can have similar effects.

Cities with long histories often present particular challenges. Centuries of construction, demolition and redevelopment can leave a complicated subsurface environment where some areas behave very differently from others.

Which brings us neatly back to Cologne Cathedral.

Cologne Cathedral: An Example of Getting It Right

Cologne Cathedral stands on the floodplain of the River Rhine, founded on alluvial deposits that exhibit considerable variability. Beneath the cathedral lie the remnants of roughly two thousand years of history, including older foundations and buried structures that could potentially influence settlement behaviour.

Yet despite these challenges, the cathedral’s towers remain remarkably vertical. There is no visible tilt and no widespread evidence of settlement-related damage in the masonry.

That is a testament to both the skill of the engineers and builders who worked on the structure and the importance of understanding how foundations interact with the ground beneath them. Construction took 600 years, meaning long rest periods allowed the soft sediments beneath to consolidate naturally between building phases.

The cathedral reminds us that successful foundation engineering is not simply about preventing settlement. It is about managing the way settlement develops.

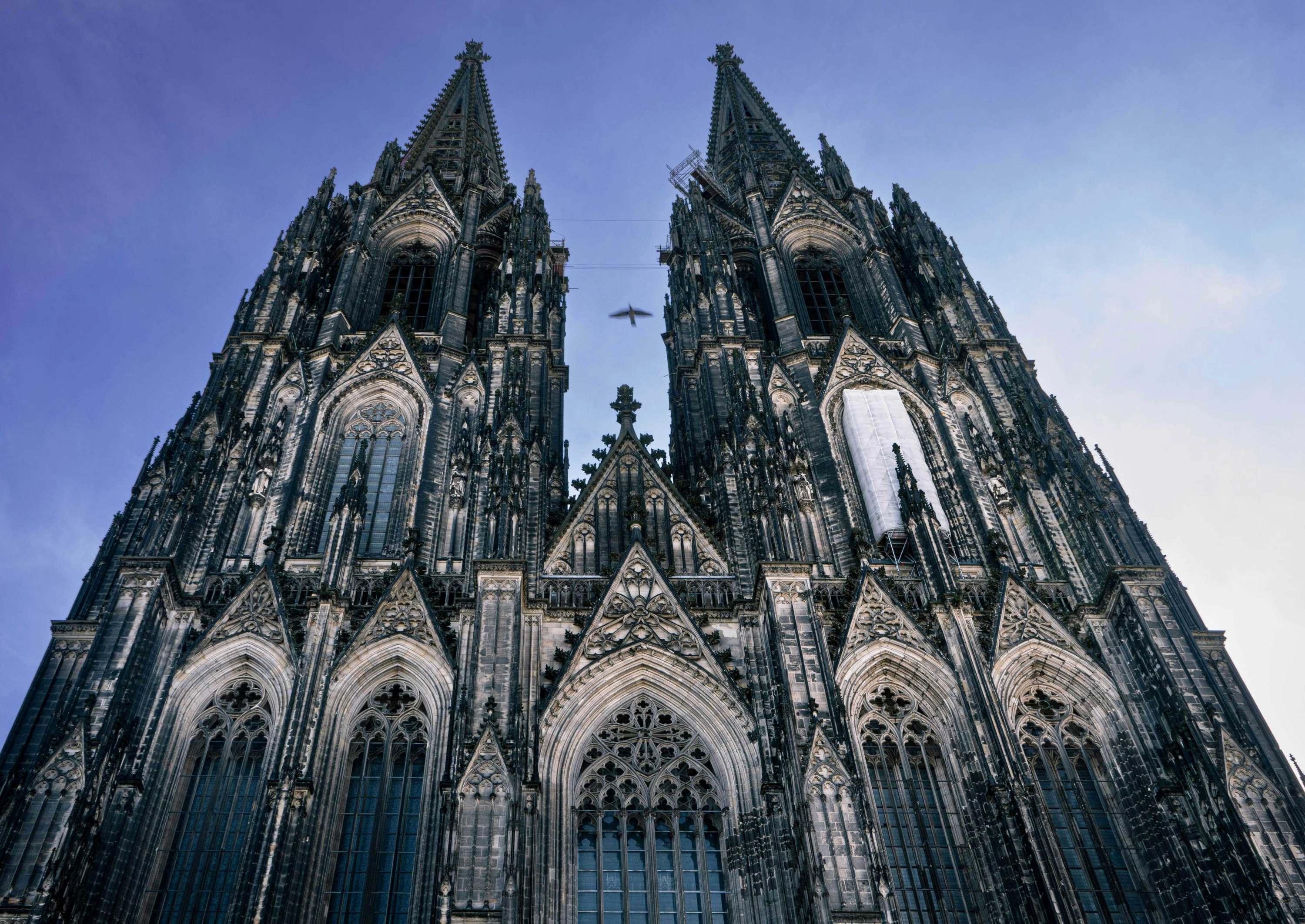

Above: Cologne Cathedral’s verticality is a testament to skilled foundation engineering despite being built on varied alluvial deposits.

Reducing Curvature

If curvature is the real problem, how can we reduce it?

1. One approach is to reduce settlement itself through deep ground improvement techniques that increase the stiffness and strength of the foundation soils.



2. Another approach is to redistribute loads more effectively so that settlements become smoother and more uniform. In many situations this can be achieved using shallower and more economical forms of ground improvement.

A prime example of the latter is Tensar InterAx geogrid. By enhancing load distribution within the foundation system, InterAx helps smooth out localised distortions and minimise curvature, even when some total settlement is unavoidable.

The result is often a more resilient structure, reduced maintenance requirements and a lower risk of curvature-induced damage to buildings, pavements and buried utilities.

The Takeaway

The next time you hear someone blame settlement for cracks in a building, remember the pretzel.

Settlement causes movement. Differential settlement causes tilt. But it is usually curvature—the rate of change of differential settlement—that causes damage.

Understanding that distinction is fundamental to good geotechnical engineering and often the key to selecting the most effective and economical ground improvement solution.

And if a Gothic cathedral standing proudly on the Rhine floodplain can teach us anything, it is that foundations do not have to be perfect. They simply need to control the way the ground moves beneath them.
