Tensar® Uniaxial (RE) Geogrids

1 World’s First Commercially available Geogrid

40 Years of Production and Global Project Successes

120+ Year Design Life

Developed for soil reinforcement in wall and slope applications
Most advanced geosynthetic made for soil reinforcement
Made from select grades of high-density polyethylene (HDPE) resins
Highly oriented polymer structure to resist elongation (creep) under sustained tensile loads
Resistant to installation damage and chemical or biological long-term degradation

Need a retaining wall or slope design for your project?

Tensar’s design team can produce a free of charge “Application Suggestion” to illustrate what Tensar can achieve and how much value can be added to your project.

Request Design Assessment

Overview

Tensar uniaxial geogrids can carry high tensile loads applied in one direction (along the roll length). Their open aperture structure interlocks with fill material, to provide superior load transfer from the soil to the geogrid.

Tensar RE uniaxial geogrids achieve their strength by punching and drawing a homogenous polymer sheet to provide a uniform, consistent product that does not require weaving, coating or welding to maintain the product’s integrity. This unique process provides superior junction strength, allowing high-strength connections to other rolls of geogrid or facing components.

Uniaxial vs biaxial geogrids

Uniaxial geogrids offer strength mainly in one direction (along the roll length) with just enough strength in the other direction to support the open aperture structure, whereas biaxial geogrids provide high strength in two directions due to their bidirectional grid structure.

Product Range

Tensar Uniaxial (RE) geogrid is available in six grades: RE510, RE520, RE540, RE560, RE570 and RE580.

Tensar® Uniaxial (RE) Spec Sheet (PDF)

Forty Years of Success and Continual Improvement

Tensar invented geogrids, and Tensar uniaxial geogrids were actually the first commercially available geogrid type. They have been used in projects worldwide for over 40 years, during which time, continuous development has seen multiple improvements. The latest (fourth) generation provides even greater strength per kg of resin, leading to even greater construction economies.

The Strength Behind TensarTech Systems

Tensar has a wide range of systems employed in the construction of bridge abutments, retaining walls, steep slopes and embankment basal mattresses, and the majority of them rely on Tensar uniaxial geogrids to reinforce the soil and create the mechanically stabilised earth (MSE) layers.

Designed for Durability

Tensar uniaxial geogrids are rigorously tested , highly durable and very robust. Available in a range of strengths, they are characterised by long, slim apertures and integral junctions, designed to interlock with fill materials, making them a key component in TensarTech Systems.

High Strength Connections

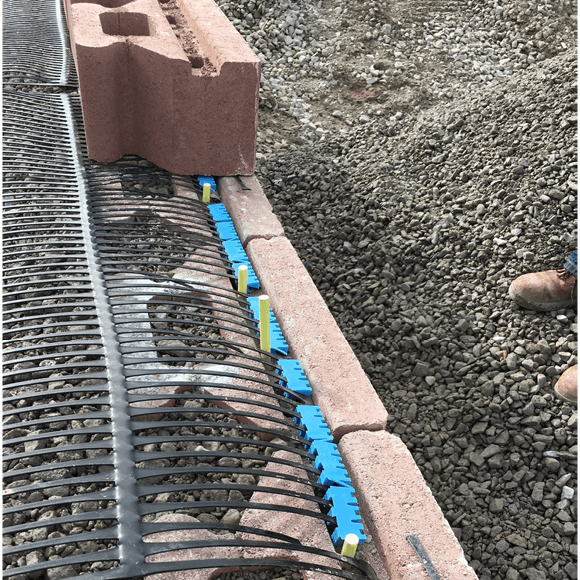

The integral junctions and stiff transverse ribs of Tensar uniaxial geogrids allow for the use of purpose-made connectors to form high-strength connections to the facing panels or modular blocks in TensarTech Wall Systems.

Tensar RE and UX Uniaxial Geogrids

There are two types of uniaxial geogrid from Tensar: RE and UX, both of which are made from selected grades of high-density polyethylene (HDPE) resin. Over the past 40 years, the long-term (creep) load characteristics of Tensar uniaxial geogrids has undergone extensive study and there is independent certification that confirms their suitability for reinforced soil structures, with a design life of 120 years.
