Why tensile strength is not a good measure of stabilising geogrid performance

by Jonathan Cook, on August 27, 2020

A geogrid’s intended use, and how it interacts with the soil layers around it, is far more important than its physical properties, when assessing performance.

Many geogrid specifications focus on tensile strength, equating high ultimate tensile strength – the maximum load a geogrid can handle before performance is compromised – with better performance.

However, while some geogrids rely on their tensile strength to provide a reinforcement effect, for stabilising geogrids, ultimate tensile strength alone is actually a poor indicator; their ability to stabilise a granular fill (the stabilisation effect) is a far more important factor in determining the performance of a road or working platform.

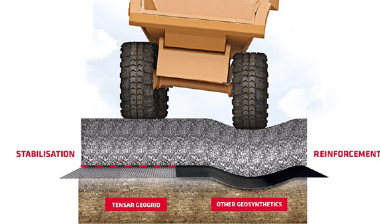

Diagram 1_stabilising geogrid performance
Reinforcement geogrids stretch when loaded, which can lead to deformation of the road surface.

The stabilisation effect

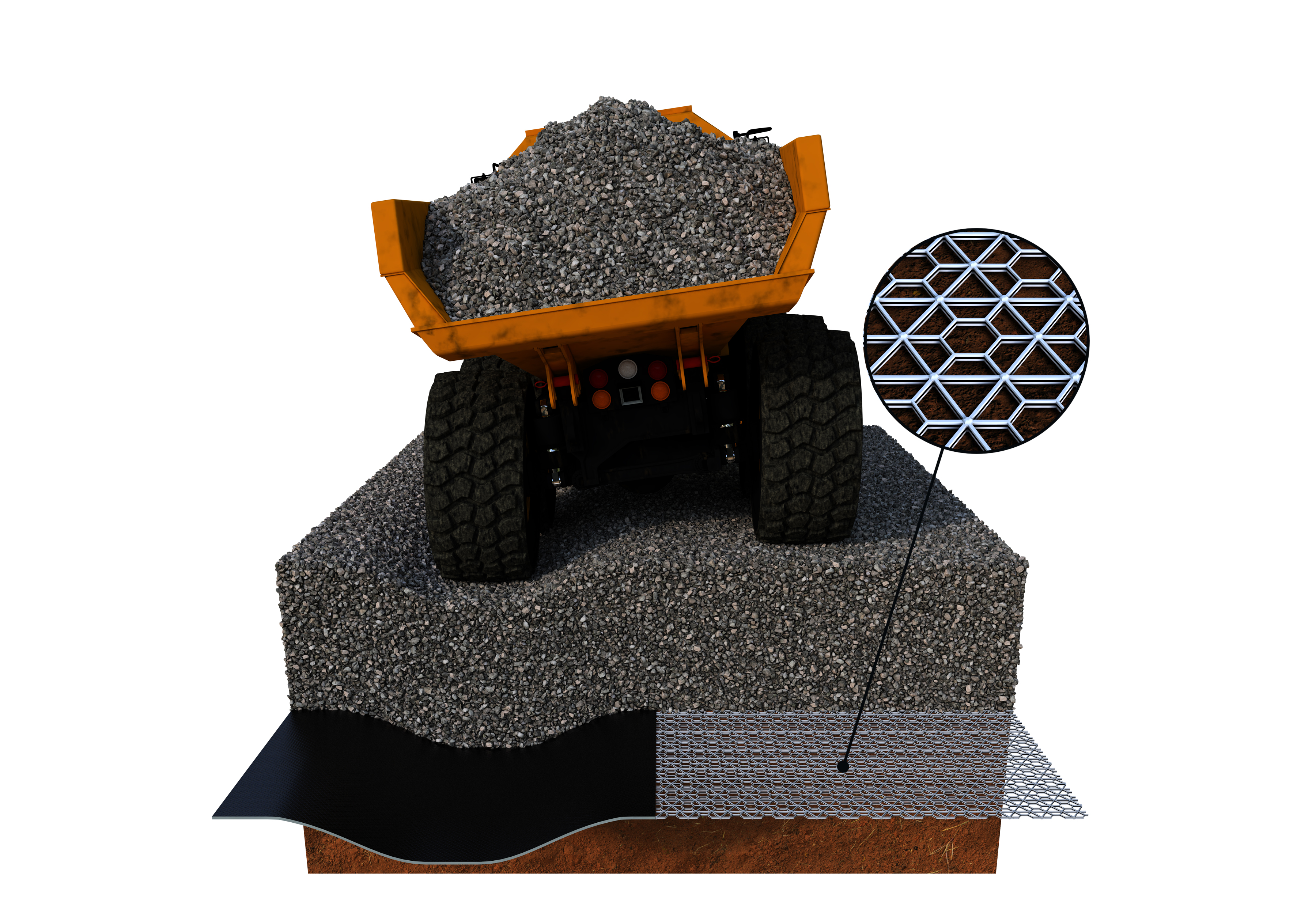

As we have seen in previous blog posts, an aggregate layer incorporating stabilising geogrid performs as a composite, due to the interlocking mechanism and particle confinement that develops between the aggregate and the geogrid, preventing the lateral movement of the granular material.

This Tensar ‘mechanically stabilised layer’:

  • Stabilises the granular fill
  • Limits deformation under dynamic trafficking load
  • Increases bearing capacity under static load

The stabilisation effect can increase traffic capacity of the road, reduce pavement thickness or a combination of the two.

In this 'Keeping you in the know' video, Jonathan Cook explains why the tensile strength of geogrids is irrelevant when they are used to stabilise granular layers in roads and temporary working platforms.

The stabilisation function

Rather than the physical properties of a stabilisation geogrid, it is its effect on the granular fill placed and compacted on top of it to form the road layer that needs to be applied, to allow the benefits to be quantified. Stabilisation Factors, derived from extensive full scale trafficking trials and project experience, are applied using Tensar’s bespoke roadway design software.

Alongside Tensar's exensive range of geogrids, Tensar+ design software allows you to assess geogrid performance for a variety of applications. Allowing you to see costs and savings in real time to helping you to make the most informed decision for your project.

Consider the whole picture when assessing geogrid performance

What this demonstrates is that geogrid performance should always be considered as part of an overall system—the benefit is in how the geogrid interacts with the layers around it. That is why a geogrid installed to stabilise the ground beneath a road, or to stabilise a working platform, requires different characteristics to one used to reinforce a retaining wall.

Visit our Knowledge Centre to find out more about the physical properties of geogrids.
