Geogrid solutions for temporary working platforms

Along with mechanically stabilised layers, geosynthetic cellular foundation mattresses are a cost-effective and greener alternative to traditional foundations and ground treatment, when building temporary working platforms on very weak soils.

As Andrew Lees discussed in a previous blog, geosynthetic cellular foundation mattresses can be used beneath permanent pavement structures or road embankments, to increase the bearing capacity of weak ground and control total and differential settlement.

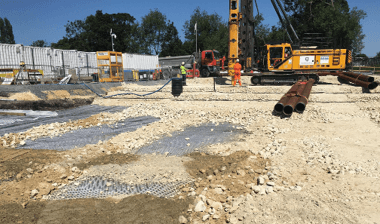

But they are also a proven alternative for temporary works, mitigating differential settlement and increasing bearing capacity of working platforms, particularly where construction involves heavy lifting, for example onshore wind farms, bridge deck installation and industrial complexes.

Tensar geogrids have been used in temporary working platforms for nearly 40 years and have been shown to increase the bearing capacity of granular layers. This means that platform thicknesses can be reduced whilst maintaining platform safety across a range of subgrade conditions and a range of granular fill types.

To understand the basics of geogrid, read our guide: What Is Geogrid & How Does it Work?

Delivering safe working areas for heavy lifting at Kochi Refinery

Cellular foundation mattresses are also sometimes used in conjunction with mechanical stabilisation using layers of geogrids, to provide additional bearing capacity when very heavy loads are being lifted or where the ground is particularly weak.

This was the case at a new refinery block being built at Bharat Petroleum Corporation’s Kochi Refinery in Kerala, India.

The site was underlain by weak silts, incapable of supporting the heavy cranes being used to build the facility. Additionally, because existing ground level was also the finished working level of the plant, a conventional working platform could not be built. Instead, the plan was to excavate the weak soils and replace them with engineered fill, creating safe working areas at ground level.

This meant digging down to about 1.65m in assembly area and 2.75m in the main lifting area, which would have been expensive and time-consuming (the platforms had to be ready within 60 days), so Petrofac International sought an alternative solution.

Tensar Geosynthetics India produced two platform designs, one for the lifting area, for a maximum load of 23t/m² and maximum allowable settlement of 75mm, and one for the assembly area, for a maximum load of 15t/m² and a maximum allowable settlement of 25mm.

Both ‘platforms’ comprised a 1m thick granular layer, mechanically stabilised with Tensar geogrid, to provide the required safe bearing capacity. Additionally, the lifting area platform was built on a 0.65m thick TensarTech Stratum basal mattress, filled with suitable granular fill below the MSL, to support the heavier loads.

By reducing the excavation depth by 40%, costs were 30% lower than dig and replace and the platforms could be built much faster, taking just 45 days from design to completion.

Download the full case study or request a free design assessment and to discover how Tensar's geogrid solutions can enhance the performance and value of your working platform design and construction.
